제품 상세보기

제품명

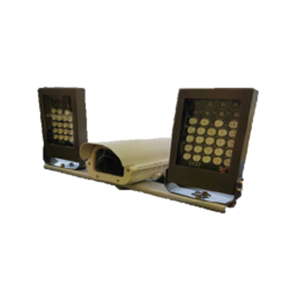

EN-IPNC-BL00044배줌 IP IR BOX TYPE CAMERA
4배줌 IP IR BOX TYPE CAMERA
특징
  • 200만화소 IR BOX TYPE CAMERA
  • 렌즈 10-40mm
  • 고속 식별용 카메라
  • Global Shutter 1 / 1.8" COMS
  • 특정영역 감시차단 기능
  • 야간 컬러 영상 지원
  • True Day&Night(ICR) 지원
카메라
Image sensor 1 / 1.8" SONY Global Shutter CMOS Sensor
Total Pixels 2000(H) × 1214(V) Approx. 2.48M Pixels
Min.Illumination Color : 0.5 lux , BW : 0.1lux
DSS Color : 0.002 lux , BW : 0.001 lux
Video Output CVI, HD-SDI,Analog: NTSC/PAL(Switch by OSD), CVBS
S/N Ratio more than 90dB
WDR WDR ≥ 120db
Brightness 0-20
AGC 0-20 steps
Sens up 1× - 32×
Shutter Speed AUTO/MANUAL(1/50,60 ~ 1/30,000 sec)
Digital Slow Shutter Off/On(× 4)
Defog Off/On
Shading Off/On
BLC Off/BLC
Day & Night Auto * Color/B&W
White Balance Auto/Auto ext/Pushing/Manual
Focus ADJ Off/On
MONITOR 0/1/2/3
DNR(Digital Noise Reduction) Off/Low/Middle/High
Sharpness 0-10 steps
Digital Zoom ×1 ~ ×10
Privacy Mask 32Masks
Power(Max.)supply DC12V 10%≤1.50W
HD-SDI distance SDI Line(ND5C-2V 750Ohm)500m
